Product Description
Overview
The Martin‑Till SmartTransfer is a fully ISOBUS‑integrated hydraulic weight transfer controller that delivers real‑time control, linkage angle monitoring, and precise downforce management. Designed for fast setup and easy operation, SmartTransfer lets you see wing and center linkage angles from the cab and adjust PSI on the fly to maintain proper planter geometry and consistent row unit performance.
Key Features
- 5 Custom Presets – Instantly switch between preset PSI settings for varying field conditions.
- Linkage Angle Feedback – Monitors center, left wing, and right wing linkage angles to ensure balanced toolbar geometry.

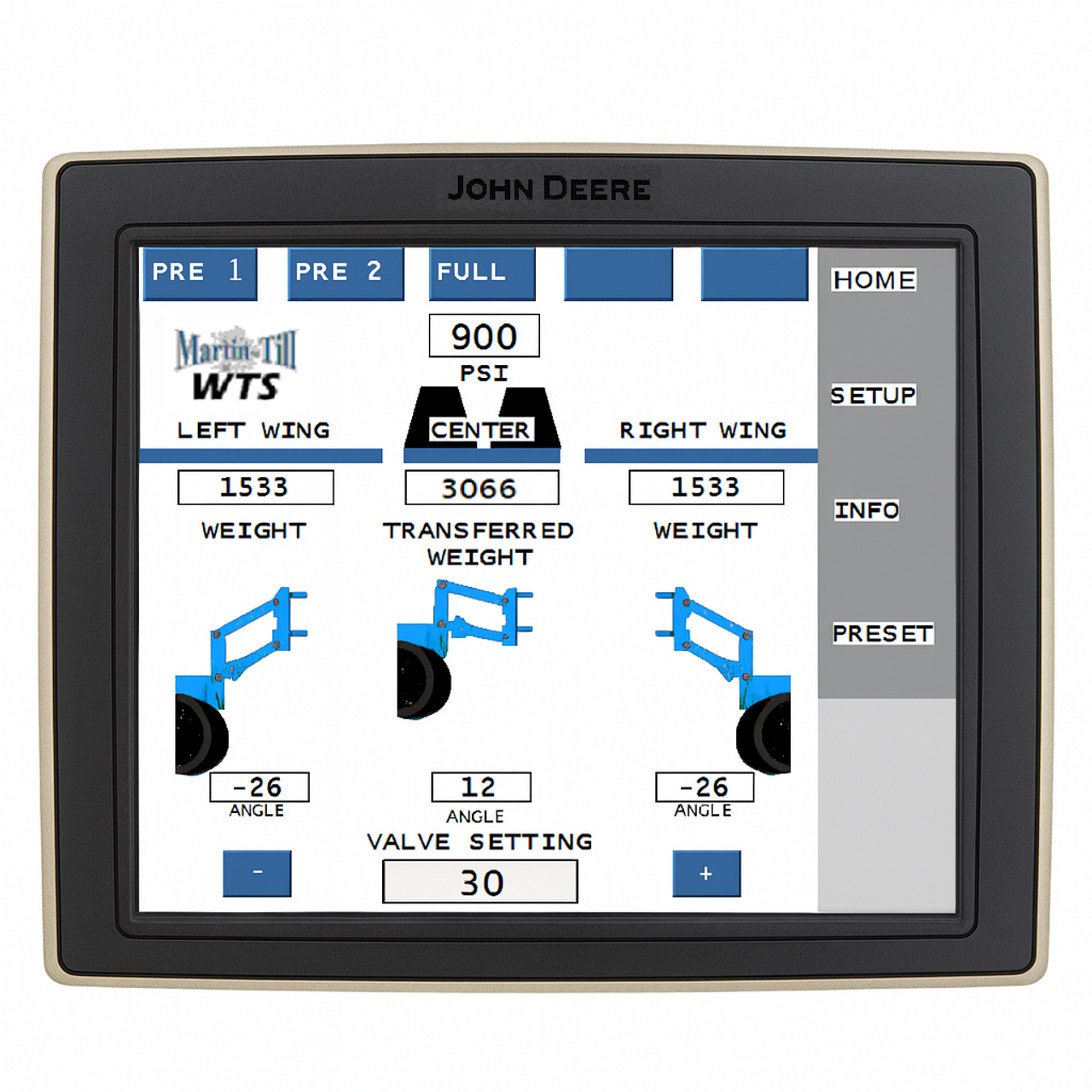

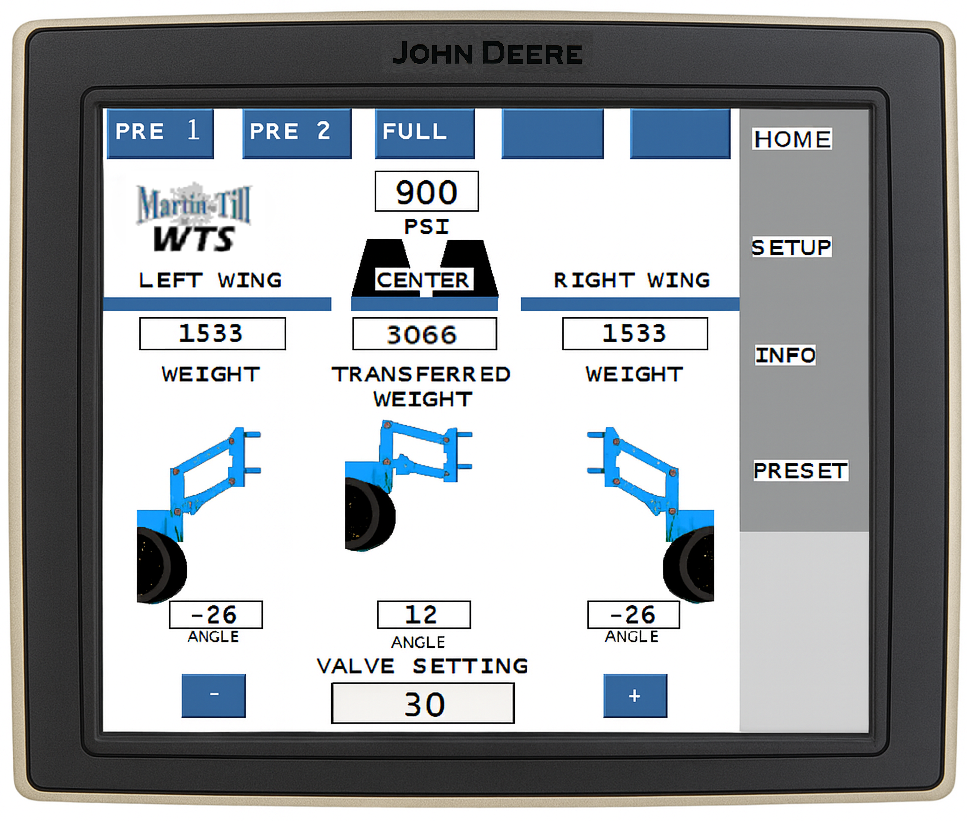

- Real‑Time Weight Transfer Display – See actual pounds transferred to wings to fine‑tune PSI for even distribution.
- Precision PSI Control – Adjust downforce directly from your ISOBUS terminal—no extra controller required.

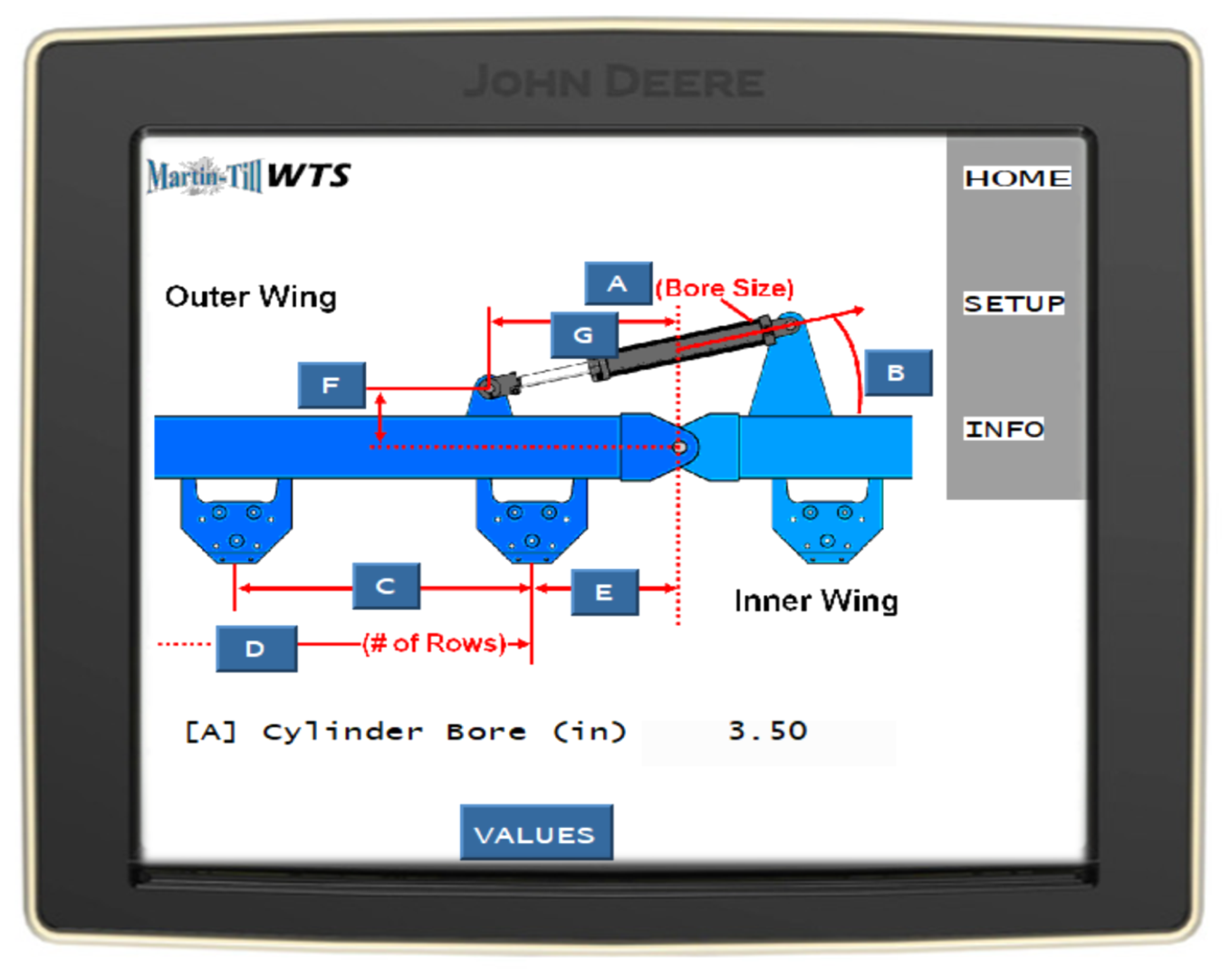

- Fast, Universal Setup – Retrofit existing systems with a few simple measurements—no custom wiring or welding.
Additional Benefits
- Increased Flotation – Transfers excess weight from the center frame to the wings to reduce compaction.

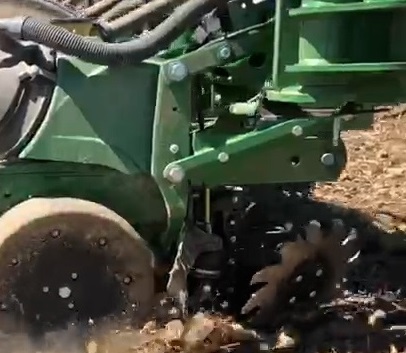

- Prevents Wing Float – Keeps wings steady when row unit downforce increases in tough no‑till; increase PSI until linkages are parallel.
- Cab‑Mounted Adjustability – Optimize planter performance on the go. SmartTransfer ISOBUS control available.
- Large Hydraulic Gauge – Easy pressure monitoring from the cab with a color‑coded front‑mounted gauge.
- Innovative Brackets – Spread forces across frame structures to reduce bolt loads and improve durability.
- No‑Weld Installation – Bolt‑on simplicity helps preserve planter resale value.
- Optimized Cylinder Bores – Sized using engineering calculations to avoid over‑stressing the toolbar.
